Dangerous and navigable semi-circles of a cyclone

Use of drogue in emergency steering

Cocked Hat

Navigation calculations: From compass to true and from true to compass

Variation Calculations

Parallel Indexing

Double the angle off the bow (figures 1 & 2)

Speed, distance, time calculations (also, see formula below)

Estimated Position (EP)

Running Fix

Chart symbols / chart conventions

Set and drift

Formula for speed, distance, time calculations

True wind calculations

Nobility scale of metals

World-wide radio Nets and Scheds

Photos of our journey

=======================================================================================================================

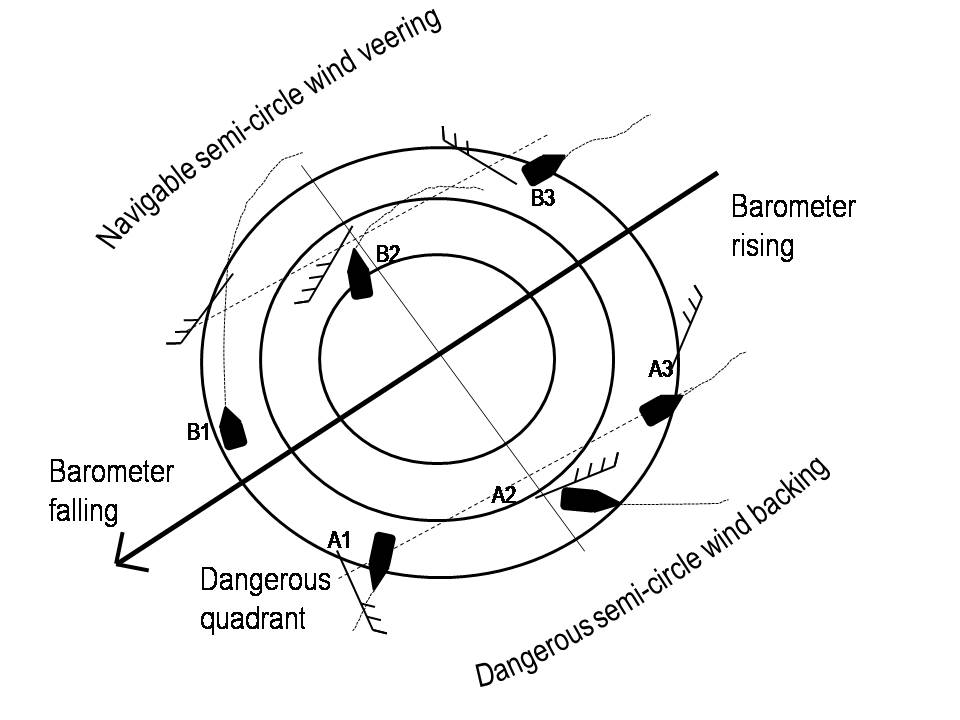

Dangerous and navigable semi-circles of a cyclone
This picture is based on cyclones in the southern hemisphere. (Cyclones spin clockwise in the southern hemisphere, anti-clockwise in the northern hemisphere.) Therefore, the dangerous semi-circle of a cyclone is to the right of an approaching cyclone path. This area has the strongest winds and it is the direction the cyclone is expected to move.This picture is based on cyclones in the southern hemisphere. (Cyclones spin clockwise in the southern hemisphere, anti-clockwise in the northern hemisphere.) Therefore, the dangerous semi-circle of a cyclone is to the right of an approaching cyclone path. This area has the strongest winds and it is the direction the cyclone is expected to move.

To evade a cyclone: In the southern hemisphere, if you are in the navigable semi-circle, keep the wind on your port quarter and manoeuvre away from the cyclone. If you are in the dangerous semi-circle, keep the wind on your port bow and try to manoeuvre away from the vortex.

Remember, no part of a cyclone is safe. It is just that in the navigable sectors you have a better chance of escaping the path of the vortex.

In the diagram above, vessels at B1, B2 and B3 have a chance to run away from the vortex. Vessels at A1, A2 and A3 are in a perilous situation: if they run they will be sucked into the vortex. Therefore, they have to keep the wind on the port bow to try to get away from the vortex. Conditions will improve, believe it or not, by A3. From here keep heading NE until the cyclone dies out. (Note from Noel: ‘Then I’d run aground somewhere, climb a tree and never go back to sea!’)

=======================================================================================================================

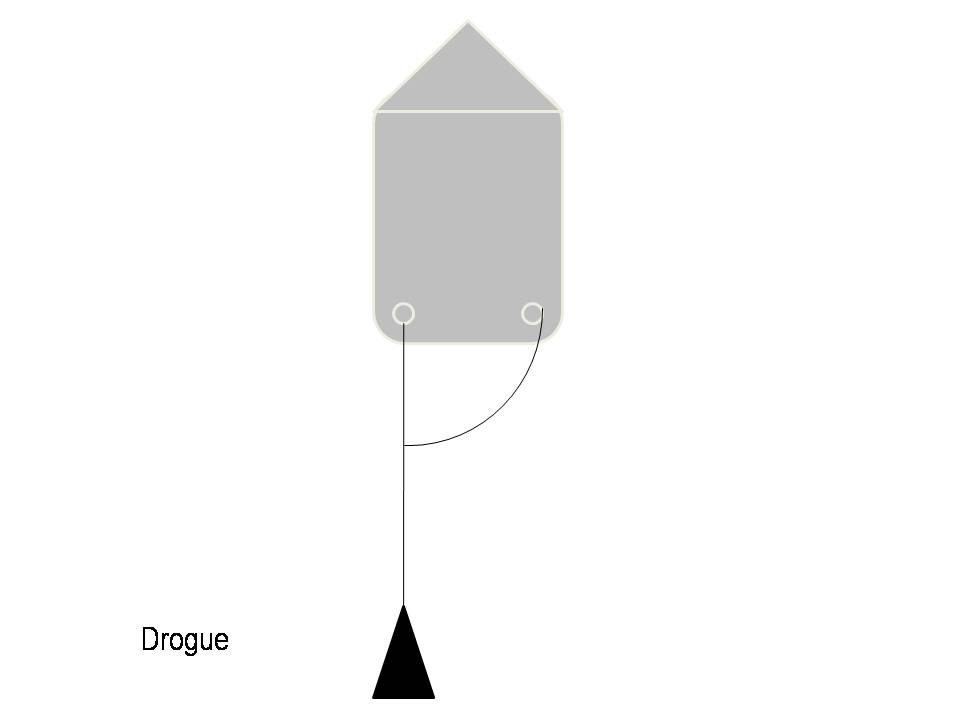

Use of drogue in emergency steering
drogue

=======================================================================================================================

Cocked Hat

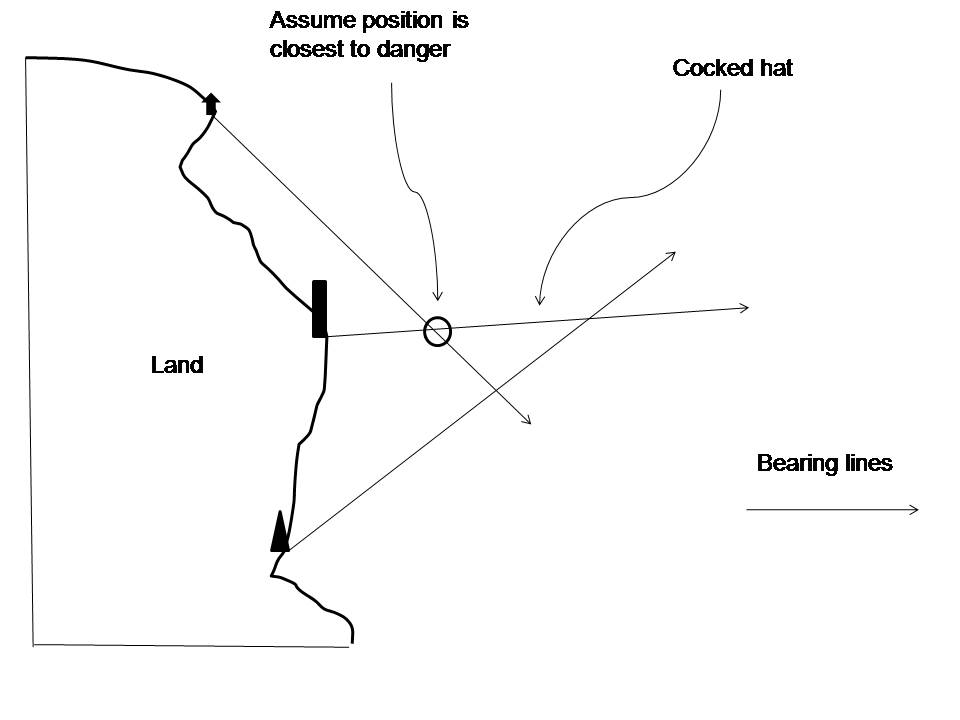

cocked hat single picWith three bearings, you may end up with a cocked hat where the three bearing lines meet (usually looks like a witch’s hat, as above. If it is not too big, mark your position in the cocked hat at the closest point to danger and have another go (in the picture it shows that position would be nearest to land. Cocked hats occur with errors (plotting, wrong identification of object, compass error incorrectly applied or unknown compass error), or this could occur with the imprecise reading of the compass or an unsteady hand when at sea.

=======================================================================================================================

Navigation calculations: From compass to true and from true to compass

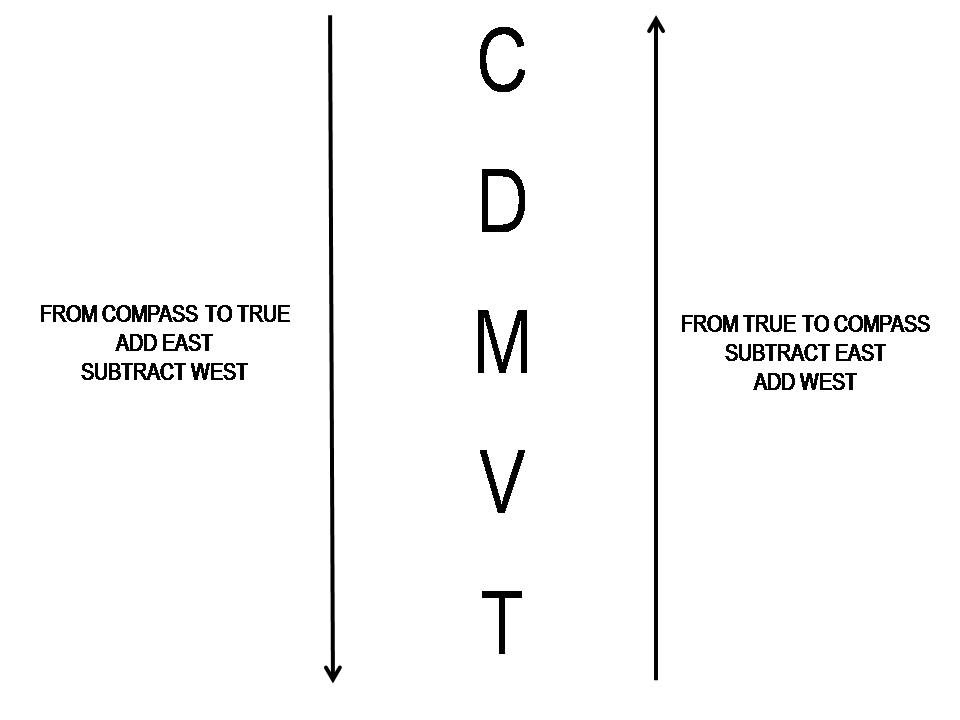

CDMVT

Above we have:

Written out CDMVT with arrows alongside

We know by using CADET, when going from Compass to True we ADD EAST (ADE). So draw a line pointing from C to T and write, next to this line ‘Add East’. If you add east you must subtract west – write this on the same side.

On the other side of CDMVT, draw a line with an arrow going in the opposite direction from the first arrow on the other side.

The instructions for East and West are the exact opposite. Therefore write subtract East, add West.

Simply follow the directions.

=======================================================================================================================

Variation Calculations

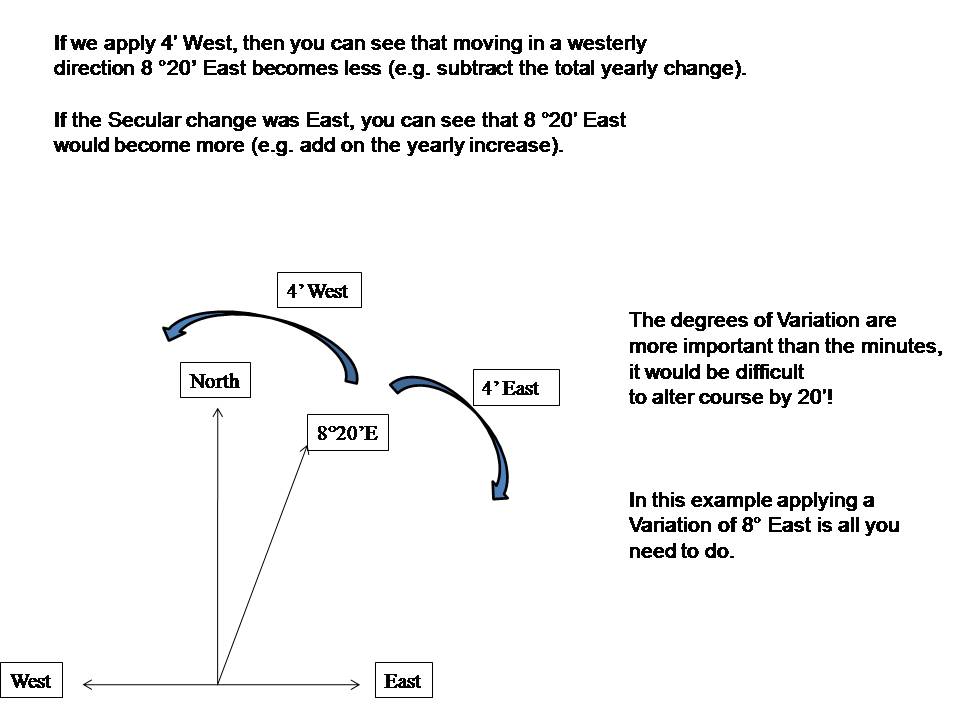

variation change single pic



=======================================================================================================================

Parallel Indexing

How to do Parallel Indexing: You place a line at a chosen clearance range from the centre (your boat), parallel to your heading line and on the side where the obstruction/headland exists (using an offset EBL (electronic bearing line) or a PI (Parallel Index) line if your radar provides one). Use the VRM (variable range marker) to set the EBL/PI line at the appropriate distance and make sure you do not breach that line. (See diagram below.)

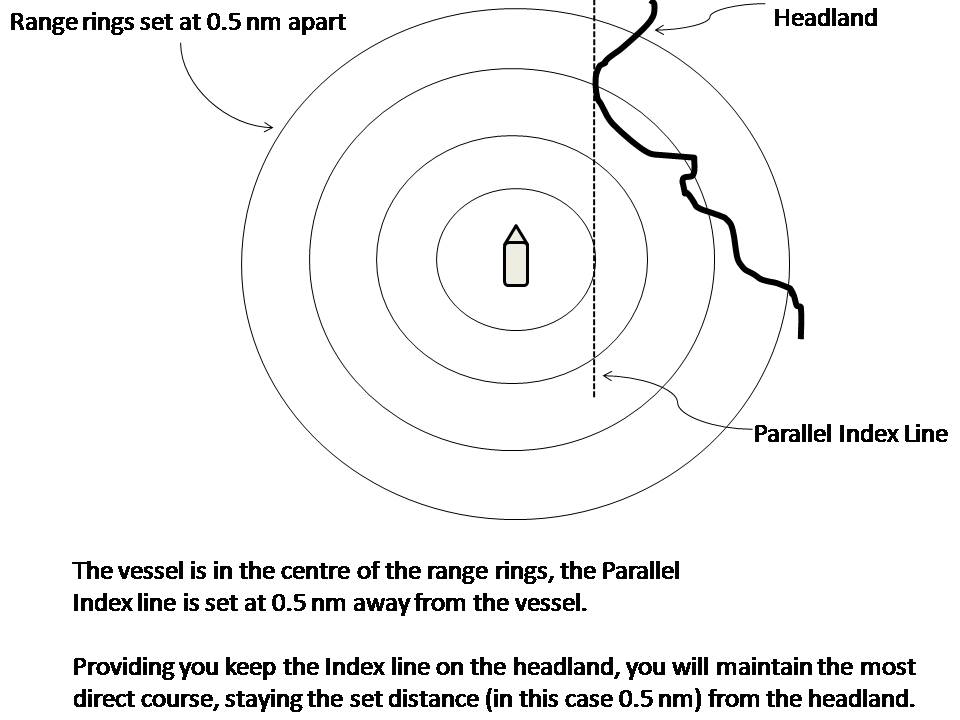

range rings single pics

=======================================================================================================================

Double the angle off the bow. Figures 1 & 2.

double angle off bow figure one single pic



double angle off bow figure 2 single pic

Follow the step by step  instructions in the book!

=======================================================================================================================

Speed, distance, time calculations

The following example is a vessel travelling at 6 knots for one and a half hours (see Speed, Distance, Time formula later in the book for more complex calculations).

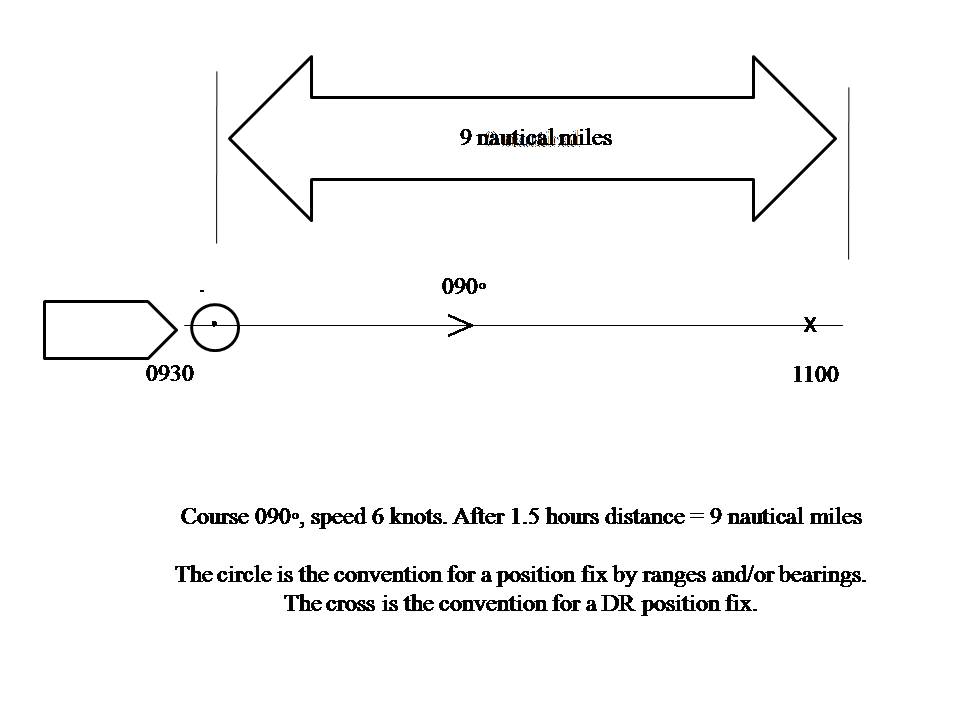

9 nautical miles (DR)

=====================================================================================================================

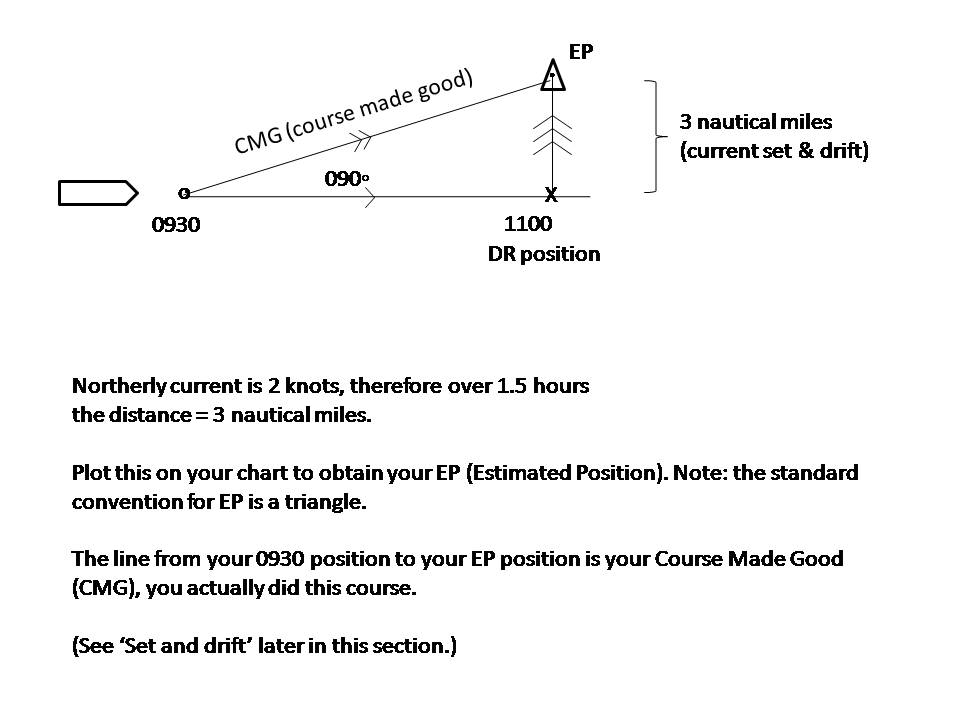

Estimated Position (EP)Plot your DR position on your chart. From your DR position, lay off the estimated set and drift of the current.EP single picFollow the detailed, step by step instructions in the book.
==================================================================================================================

Position – Running Fix

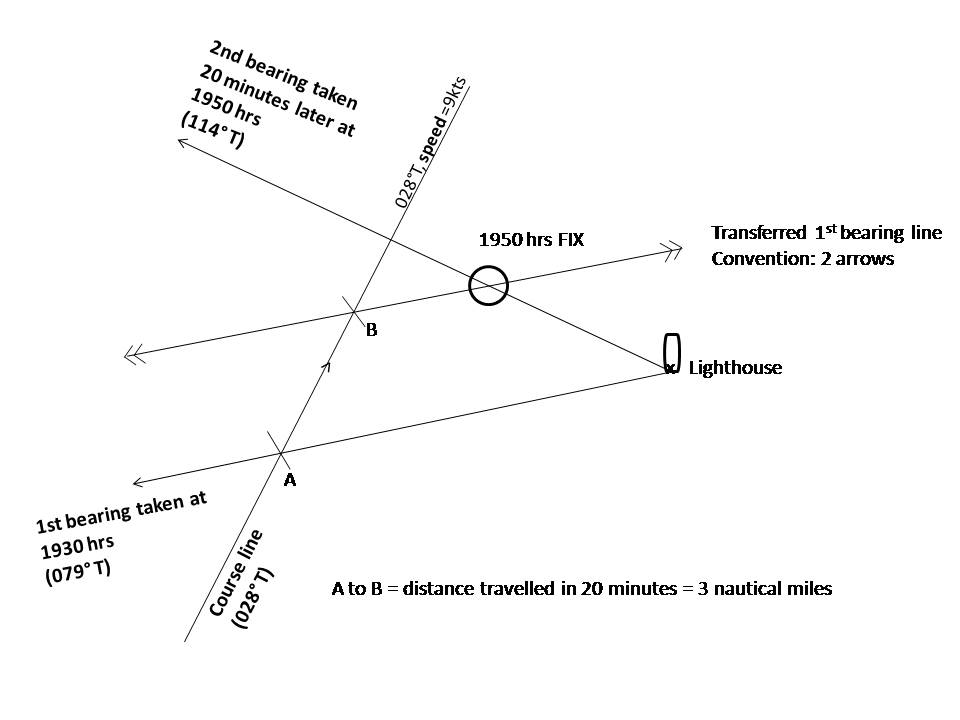

A running fix is a fix using two bearings and it doesn’t matter how far the course line is from the bearing object, therefore it is used when you have no means of measuring the range.

running fix single pic



See full step by step instructions in the book.

=======================================================================================================================

Chart symbols / chart conventions

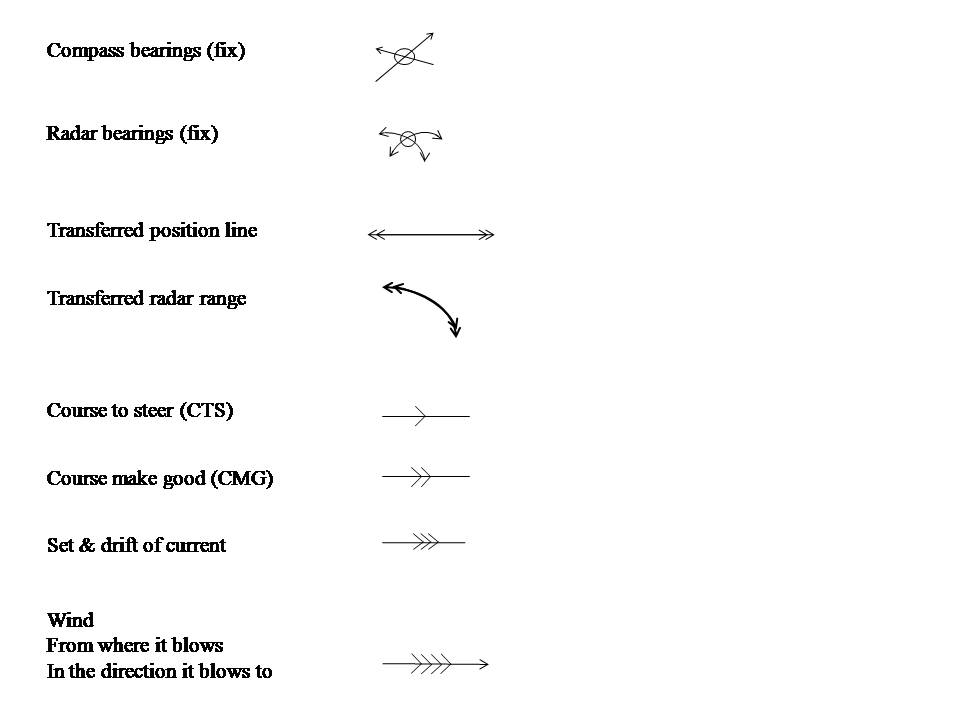

On the chart, use the following symbols so everyone understands the workings.

chart conventions



=======================================================================================================================

Set & Drift

Current will push you in a certain direction (called ‘set’) and over a period of time, the current will move you a distance (called ‘drift’). To counteract set and drift, you need to know the speed and direction of the current. (You could do this by taking a good fix position and comparing that position to your DR position. The difference between your good fix and DR position will be the set and drift).

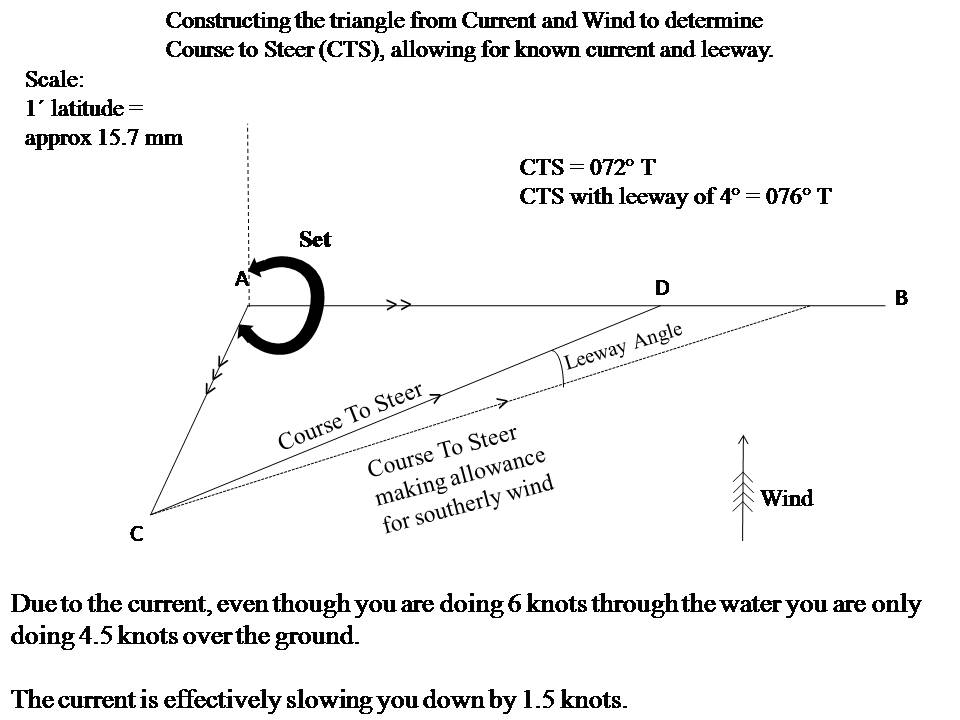

Finding the Course to Steer (CTS) allowing for a known current:

course to steer (finding) single pic

For full, step by step instructions, see the book.

=======================================================================================================================

Formula for speed, distance, time calculations

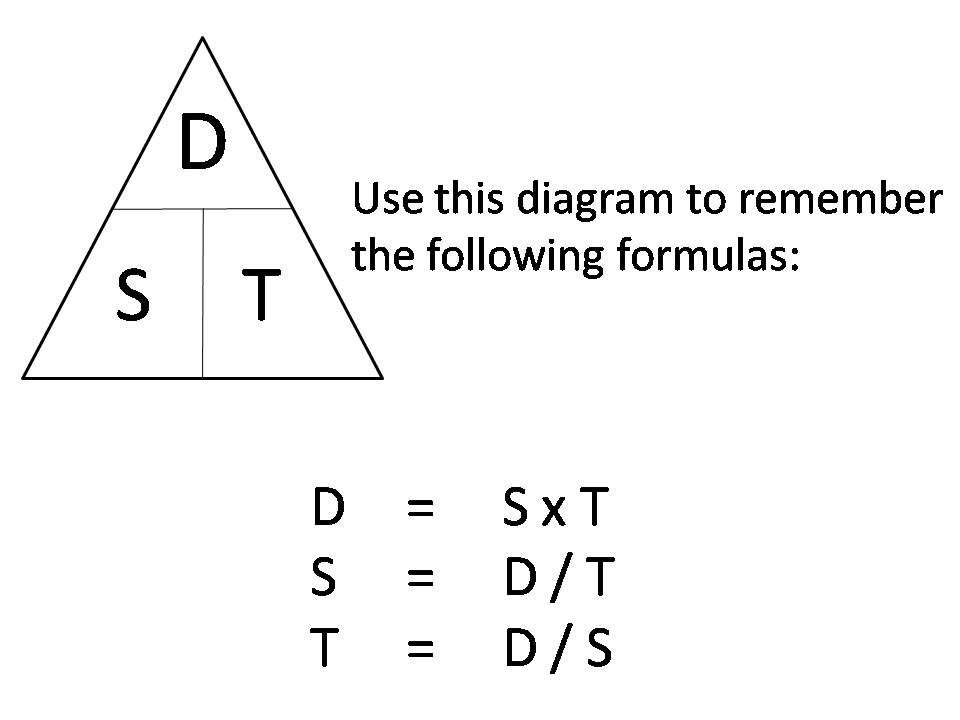

DST



See the book for further instructions

=======================================================================================================================

True wind calculations

wind victors single pic

For full details, follow the instructions in the book.

=======================================================================================================================

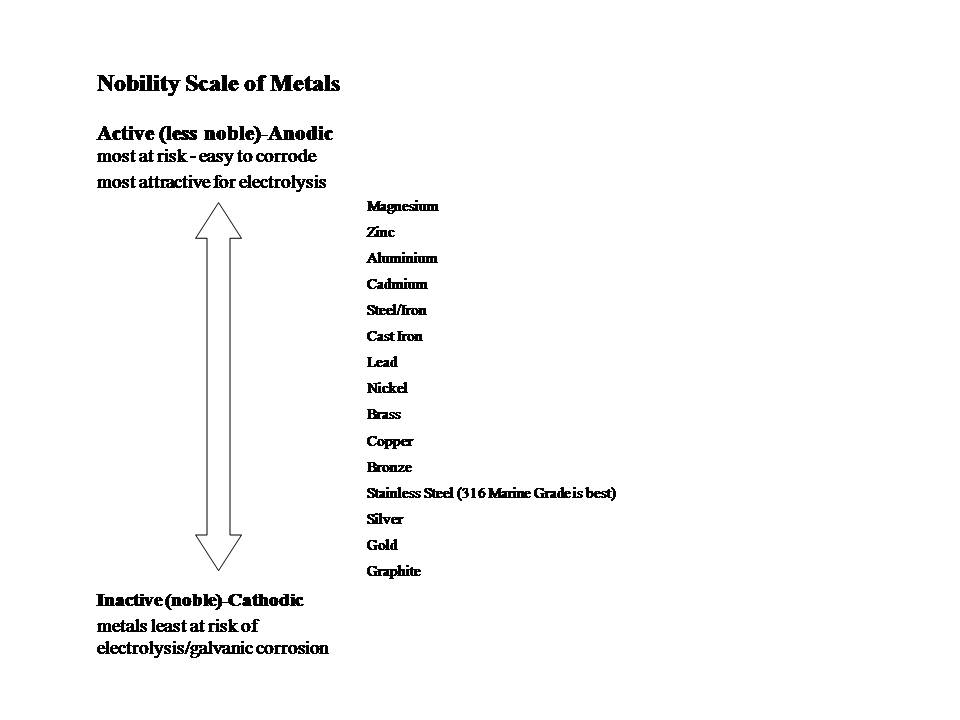

Nobility Scale of Metals

=======================================================================================================================

World-wide radio Nets and Scheds

NAME TIME FREQUENCY AREA COVERED
Sonrisa Net 0730 hrs (PDT) 3.968 MHz Sea of Cortez
Russell RadioNew Zealand 1800 hrs (NZ)1830 hrs (NZ)1900 hrs (NZ) 6.516MHz4.445 MHz4.417MHz South Pacific
New Zealand Wx Net 2000 hrs (Z) 7.080 New Zealand
Med M/M Net 0700 hrs (Z) 7.085 MHz Mediterranean
Comedy Net 2040 hrs (Z) 7.087MHz Australia, South West Pacific(very informal – multipurpose)
Harry’s Net 2000 hrs (Z) 7.095 MHz W & S Pacific
Baja California M/M Net 1530 hrs (Z) 7.238 MHz Coastal Baja & California
Caribbean M/M Net. Saint Croix 1100 hrs (Z) 7.241 MHz Caribbean
Chubasco Net 1445 hrs (Z) 7.192 MHz Mexico West coast
The Namba Net 0815hrs local time Vanuatu (Z + 11) 8.101 MHz Operates May to October, sister Net to Sheila Net
Radio ‘Peri-Peri’ E. Africa 0500 hrs (Z)&1500 hrs (Z)  8.101 MHz then,12.353 MHz (after weather) Indian Ocean & South Atlantic(both times, both frequencies)
Caribbean Safety & Security Net 1215 hrs (Z) 8.104 MHz Safety & Security issues in the Caribbean
Panama Canal Connection Net 1330 hrs (Z) 8.107 MHz Pacific from Mexico to Galapagos, Atlantic from Belize to Colombia (emphasis on SW Caribbean)
Panama Pacific Net 1400 hrs(Z) 8.143 MHz (Alternatives: 8.137, 8.155,6230) Panama to Galapagos (depending on propagation – Southern Mexico to Ecuador too)
Cruiseheimer’s Net 1330 hrs(Z) 8.152 MHz US East Coast & through Eastern Caribbean
Sheila Net 2200 hrs (Z) 8.161 MHz NE Australia, New Guinea, Louisiade Archipelago, Solomon Islands, Vanuatu and Noumea
Rag of the Air Net 1900 hrs (Z) 8.173 MHz SW Pacific
Northwest Caribbean Cruisers Net 1400 hrs (Z) 8.188 MHz Mexico to San Andres Island, Colombia
Coconut Breakfast Net 1730 hrs(Z) 8.188 MHz French Polynesia
Coconut Breakfast Net 1830hrs (Z) 12.353 MHz West of French Polynesia
Herb Hilgenberg’s Southbound II Net 1930 hrs (Z) 12.359 MHz  Atlantic & Caribbean (reaches into Pacific later in the broadcast)
French Net 0300 hrs(NZ) 13.940MHz French
‘Le Reseau Du Capitaine’ Net Montreal, Canada. Bi-lingual operators 0700 hrsMontreal time 1830 hrs Montreal time (emergency traffic & weather) 14.118 MHz Atlantic, Caribbean and Pacific
Mississauga Net 1245 hrs (Z) 14.122.5MHz Europe, Med, Atlantic, Caribbean & Central America
European M/M Net (Italian and English) 2000 hrs (Z) (1900 hrs (Z) between 30/3 & 20/10) 14.297 MHz Weather for E & N Atlantic & S Atlantic between Africa & Brazil
M/M Service Net 1700 hrs (Z) during winter 1600-0200 hrs (Z) in summer 14.300 MHz Atlantic from Cape Town to Greenland, the Eastern Pacific & Gulf of Mexico
UK M/M Net 0800 hrs (Z)& 1800 hrs (Z) 14.303 MHz UK, Med and Atlantic
Confusion Net 1900 hrs(Z) 14.305 MHz Pacific
Pacific Seafarers Net 0300 hrs (Z)  14.300 MHz Pacific (HAM)
Robby’s Net, Australia 1000 hrs (Z) & 2300 hrs (Z) 14.315 MHz Australian waters
Tony’s NetNew Zealand 2100 hrs (Z) 14.315 MHz South Pacific, Australia AreaHAM Net
Pacific Inter Island Net 0800 hrs (Z) 14.315 MHz Micronesia to Hawaii
Tony’s Net, Kenya 0500 hrs(Z) 14.316 MHZ Indian Ocean and Red Sea
South Africa M/M Net 0630 hrs (Z) &1130 hrs (Z) 14.316 MHz Indian Ocean & South Atlantic
Arnold’s Net (South Pacific) 0400 hrs(Z) 14.318 MHz South Pacific
SE Asia M/M Net 0025 hrs (Z)0055 hrs(Z) 14.323 MHz SE Asia
California Hawaii Net 1600 hrs(Z) 14.340 MHz Pacific E, NW and Hawaii
Manana M/M Net 1900 hrs (Z) 14.340 MHz US West Coast to Hawaii
Trans Atlantic Net 1300hrs (Z) 21.400 MHz Med, N & S Atlantic & Caribbean



Zulu (Z) = Greenwich Mean Time

M/M= Maritime Mobile

=======================================================================================================================

Photos of our journey
Pictures of our journey – relating to Cruisers’ AA short stories (scroll down). There are more pictures of our travels under OUR BOOKS/OF FOREIGN BUILD – follow the links from our home page:

???????????????????????????????

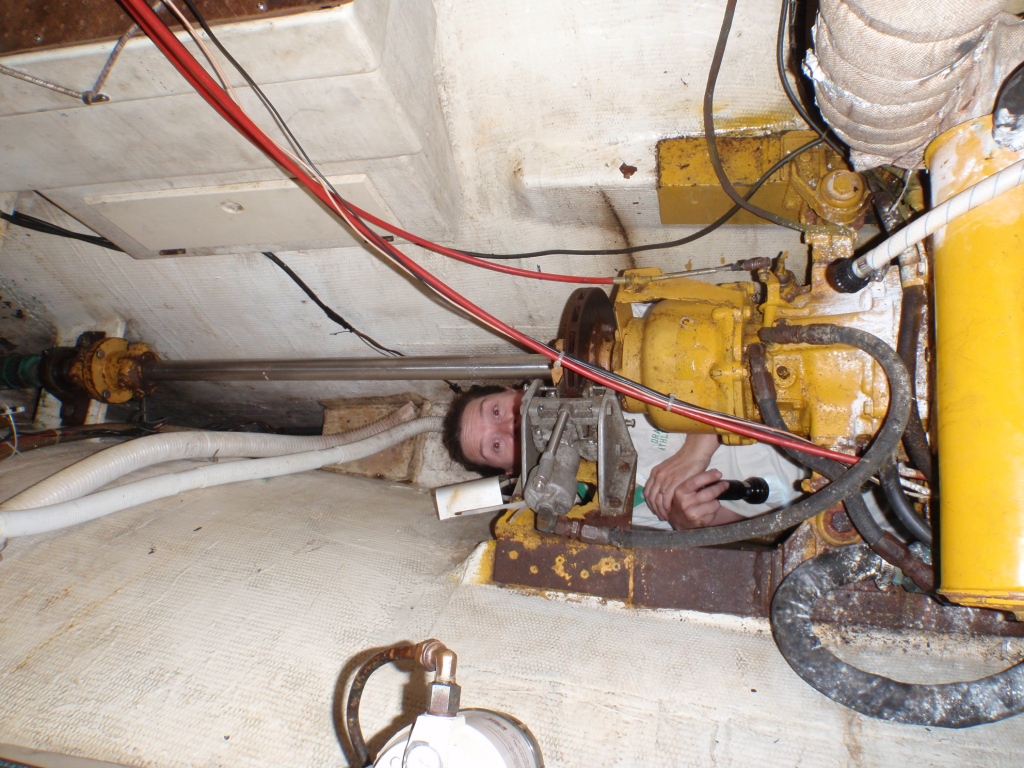

Jackie under Pyewacket’s engine. The white powder is talcum powder, as we are searching for a water leak.



???????????????????????????????

The lovely Pyewacket II

???????????????????

Tools for navigation

???????????????????????

Noel at Aitutaki – collecting water.

down wind

Wing on wing on Mariah

???????????????????????????????

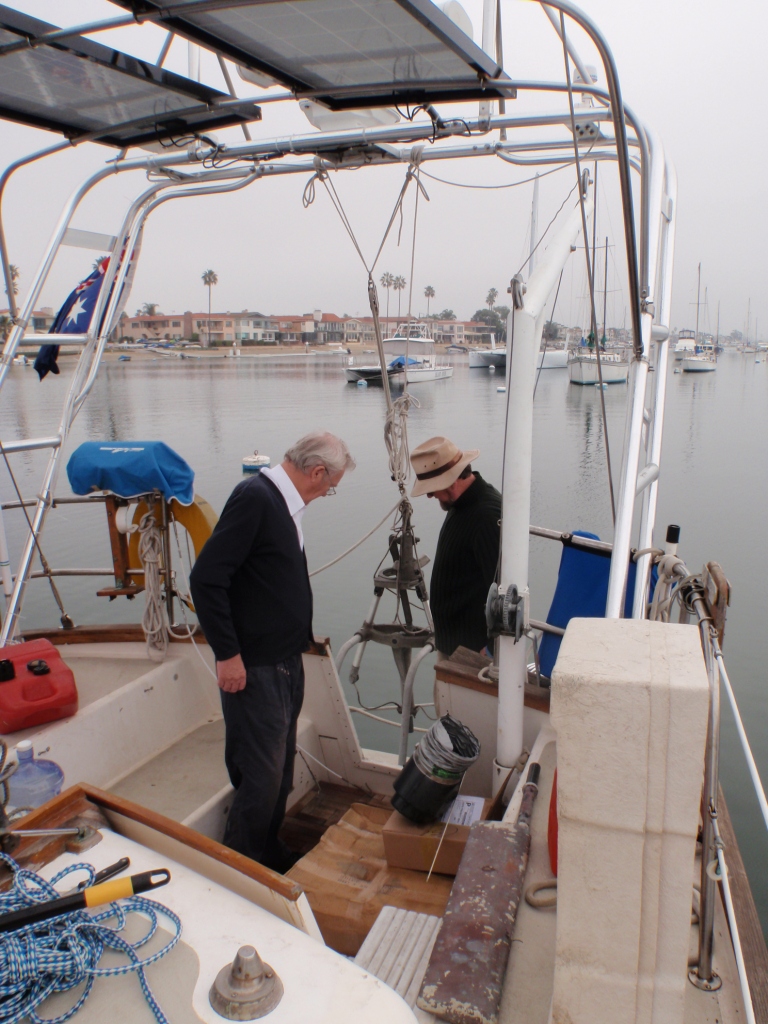

My dad and Noel, giving the new Aries a ‘good coat of looking at’ (mounting the Aries)

???????????????????????????????

I love writing and do it anytime, anywhere! (On Mariah)

P1010020a

Mariah’s pristine engine – we painted the ‘engine room’ to make a brighter area to work in.

???????????????????????????????

Crew member – Michael – during the Panama Canal – on board Mariah

???????????????????????????????

Stocking up on kitchen roll and loo paper – for Pyewacket’s trip across the Pacific

???????????????????????????????

More stocking up – wines and staples

???????????????????????????????

A sewing machine was extremely useful – Jackie is making a large shade tarp for Pyewacket

???????????????????????????????

A pretty neat office in Mexico!



???????????????????????????????

Noel installing hatches in our hard dodger – en route to Isle de Cocos! Note he is harnessed on!

???????????????????????????????

We had our anchor chain galvanised in Eucador, by hand!

???????????????????????????????

At Tahanea Atoll, Pacific – having a chillin’ moment – you can just see Pyewacket over my left shoulder!

???????????????????????????????

In Ecuador (Bahia de Caraquez) the cakes were just pennies!

???????????????????????????????

In Bahia de Caraquez there was plenty of growth on our dinghy – Noel cleaning

???????????????????????????????

Shopping at the markets in Ecuador – sometimes you have to be brave!

???????????????????????????????

Noel dancing with the locals at Moorea – near Tahiti

???????????????????????????????

My nephew Kieran came to visit us (with my dad) in Ecuador, he had great fun learning to steer the dinghy.

???????????????????????????????

Noel up the mast on Pyewacket

???????????????????????????????

Hanging the washing out in Sawarrow

???????????????????????????????

I like wearing sarongs, in Samoa so did Noel as everyone wore them – It just isn’t right, though, when your man looks better in a skirt than you!

???????????????????????????????

Rafting up in New Caledonia with Pericles – fun times!

???????????????????????????????

A trolley is important when you don’t have a car!

???????????????????????????????

The lovely Rolande from SV Pericles …. showing how important shade is! (At New Caledonia)

???????????????????????????????

Saving eggs! How come? Cruisers’ AA will tell you all about it!

???????????????????????????????

Wash your lines in fresh water when you can after a trip – the salt doesn’t do them any good!

???????????????????????????????

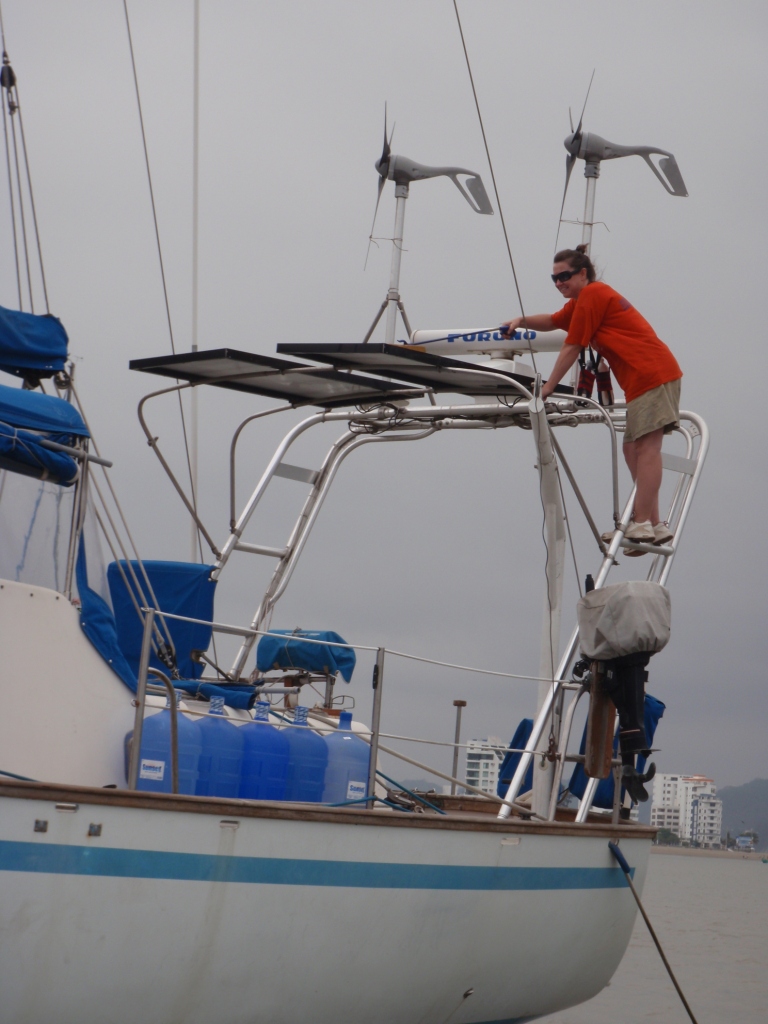

Clean solar panels regularly to get the best from them – a soft cloth and liquid detergent (small amount) works well, don’t use anything abrasive – notice the wind generator blades are lashed down.



???????????????????????????????

After 8 months in Ecuador, our lines were encrusted – it took a hammer and a whole day to clean them off – imagine how our prop looked!

???????????????????????????????

It was hard to get all the shell out of our lines – It wouldn’t have done them any good at all!

???????????????????????????????

Your dinghy becomes your car – it needs looking after – Cruisers’ AA tells you how to make quick and easy covers and how, if you lose your dinghy how hard it is to replace it – Noel ended up working in a brothel in Barbados to get our new dinghy together – you’ll have to read the book!

???????????????????????????????

Cleaning behind the oven was an interesting exercise in Pyewacket!

???????????????????????????????

Work never stops – but a dive hookah is a good idea, especially if you have a deeper keel.

???????????????????????????????

Checking in can be a chore – but sometimes fun. We arrived into Panama on Pyewacket on the 31st December – while we waited for the officials, the men outside the office gave us a beer, put on some music and we had a dance! fabulous!
